Air-O-Matic Pneumatic Dispenser and Dosing System

At last an affordable fully automatic Drencher/Doser/Injector from a high quality manufacturer.

Extensively tested in Australia this device makes light work of continuous applications to animals.

Very fast and easy to operate the unit drenches, Injects or backlines at a touch of the button, then refills and primes automatically.

The Back Pack system gives incredible freedom and each CO2 Cartridge will treat 900 animals at 30mls – Refills available from any Paintball venue etc.

Air-O-Matic™; Air Powered Delivery Instrument

• Air powered instrument for delivery of consistent dosage, volume and repeatability
• Standard air compressor drives the system
• 60-80 psi will provide rapid delivery with a press of a button, automatically delivers dose volume and reloads with ease and efficiency
• Two sizes of graduated barrels with volume adjustments
  • 0-15ml
  • 0-30ml
• Air-O-Matic™ is used in delivery of
  • Orals – Oral Nozzle
  • Topicals – Spray Tip
  • Injectables – Luer Lock Tips

Unique handle allows disassembly and reassembly of different barrel/plunger combinations providing versatility of the instrument or dedicated delivery or types of delivery.

• Simple to convert from one system to another
• Inexpensive – when compared to manual systems. Enhanced medicine delivery with less physical demands on the user
• Cost effective for all producers regardless of number of uses or the total population of livestock
• Manufactured by Genesis Instruments in the UK – a world class manufacturer.

Part Numbers

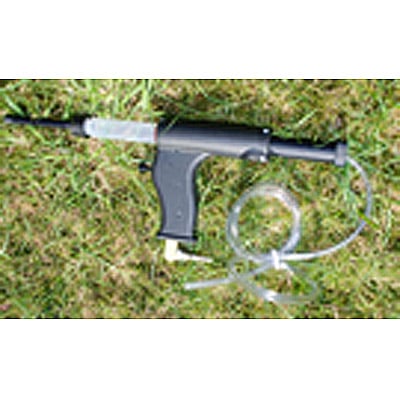

AOM001 – Air-O-Matic Gun Pneumatic Drench Gun with 60ml Barrel and Drench, T, Leurlock Nozzles

AOM005 – Air-O-Matic Gun Pneumatic Drench Gun with 15ml Barrel and Drench, T, Leurlock Nozzles

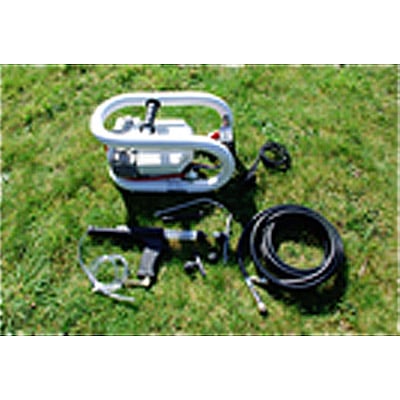

AOM002 – Compact Compressor, 10ft Rubber Hose and Fittings for Air-O-Matic Pneumatic Drench Gun

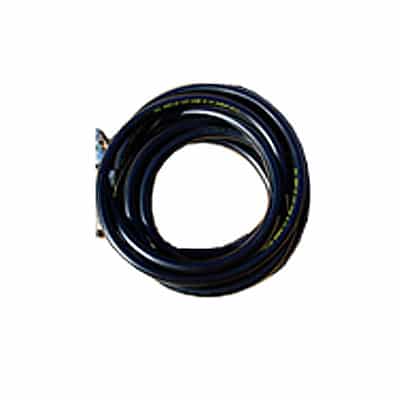

AOM003 – Air-O-Matic Pneumatic Hose – Heavy Duty with Fittings (3m/10ft)

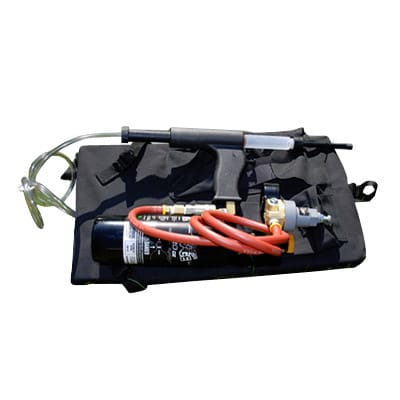

AOM004 – Air-O-Matic Nylon Back Pack System with 2 litre CO2 Cartridge (900 doses at 30ml), Regulator, Hose, Pneumatic Drench Gun with 60ml Barrel and Drench, T, Leurlock Nozzles

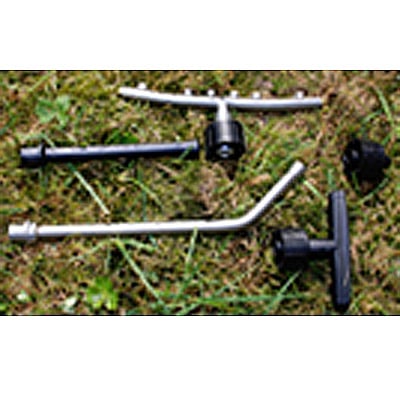

AOM/006 – Air-O-Matic Selection of Nozzles

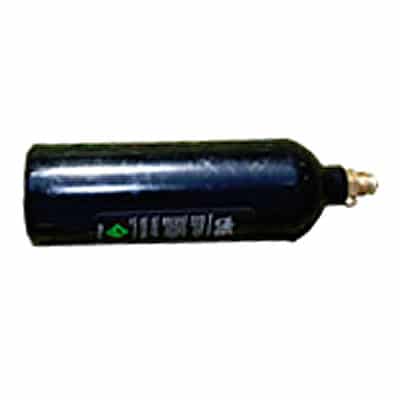

AOM/007 – Air-O-Matic CO2 Cylinder
